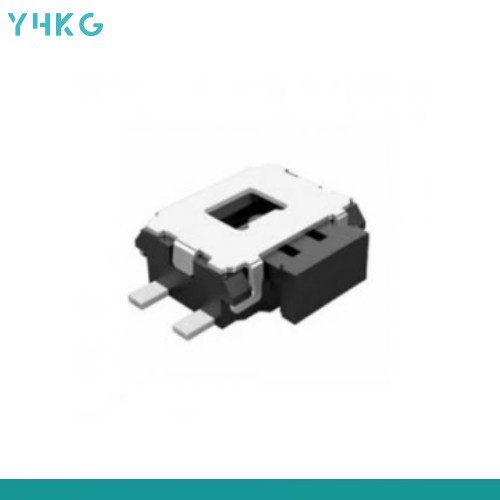

Tactile switch button TSPTSLP-34H

Model No: TSPTSLP-34H

Brand: YHKG

Original: China

Package: 1KPCS/REEL

Feature： Horizontal Push

Size： 3.5X4.7mm

Product Category： Tact Switch

Tactile Switches or tact switches are an on/off electronic switch that is only on when there is some pressure put on it or when the button is pressed.

As soon as the tactile switch button is released and the pressure has been took off, the circuit is then broken.

Dimensions

PCB layout

Circuit diagram
